Bolt-on tooth style for quick and effective replacement
Welding type is also available
Hardened teeth made of special materials
Cracking tooth on the outer end of jaw
Integrated speed-up valve for increased speed
Trunnion type cylinder for maximum breaking force throughout jaw closing and opening motion
Fully reversible rectangular blades
If you would like to discuss specific requirements for Fixed Pulverisors, please enquire or request a call back. Our specialist team is here to help you find the right attachment for the job.

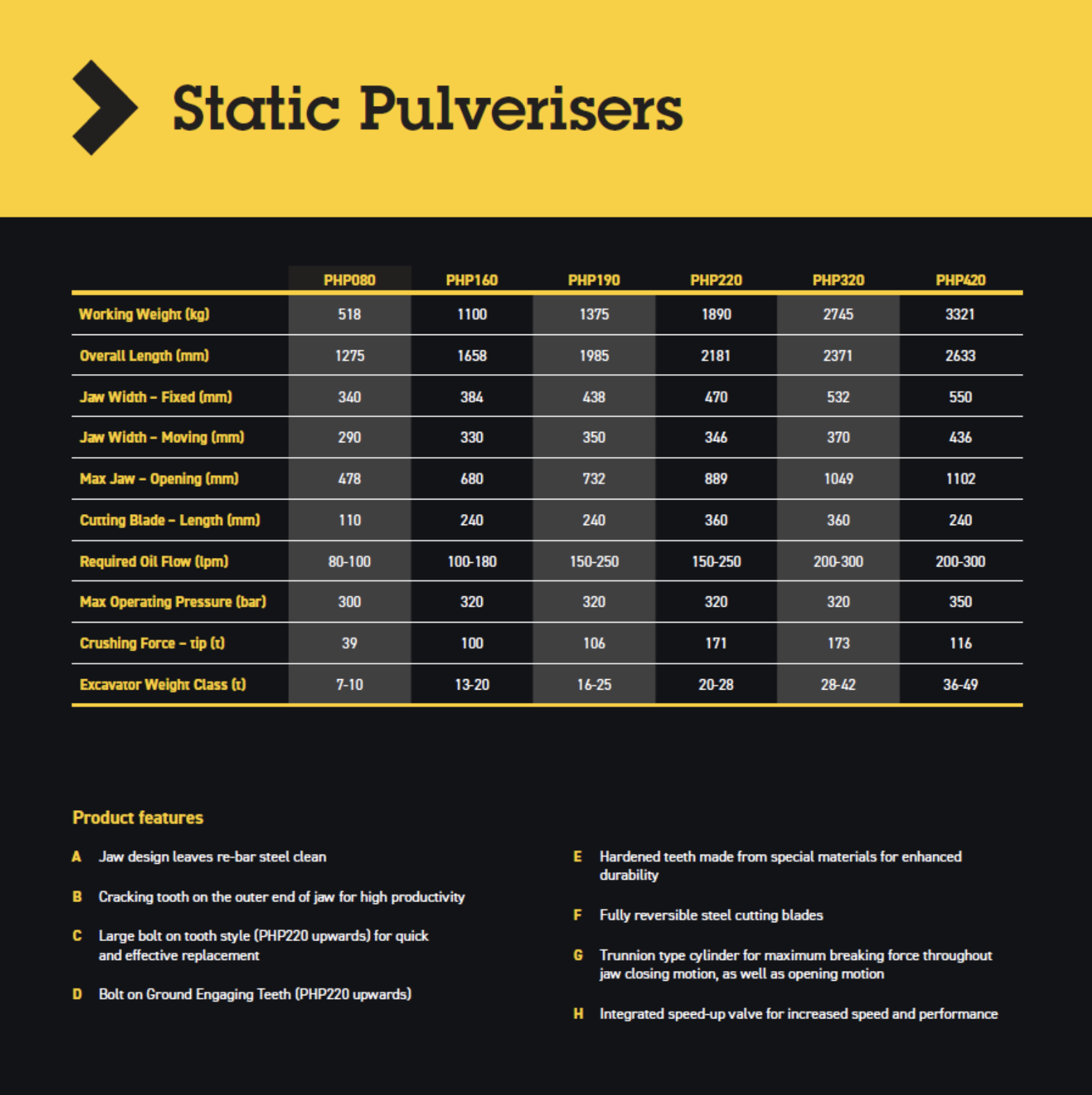

| Make | Model | Machine (t) | Working Weight (kg) | Overall Length (mm) | Required Oil Flow (l/min) | Max Operating Pressure (bar) | Crushing Force Tip (t) |
|---|---|---|---|---|---|---|---|
| Prodem | PHP080 | 7-10 | 518 | 1275 | 80-100 | 300 | 39 |
| Prodem | PHP160 | 13-20 | 1100 | 1658 | 100-180 | 320 | 100 |
| Prodem | PHP190 | 16-25 | 1375 | 1985 | 150-250 | 320 | 106 |
| Prodem | PHP220 | 20-28 | 1890 | 2181 | 150-250 | 320 | 171 |
| Prodem | PHP320 | 28-42 | 2745 | 2371 | 200-300 | 320 | 173 |
| Prodem | PHP420 | 36-49 | 3321 | 2633 | 200-300 | 350 | 116 |
If you would like to discuss specific requirements for Rotating Pulverisors, please enquire or request a call back. Our specialist team is here to help you find the right attachment for the job.

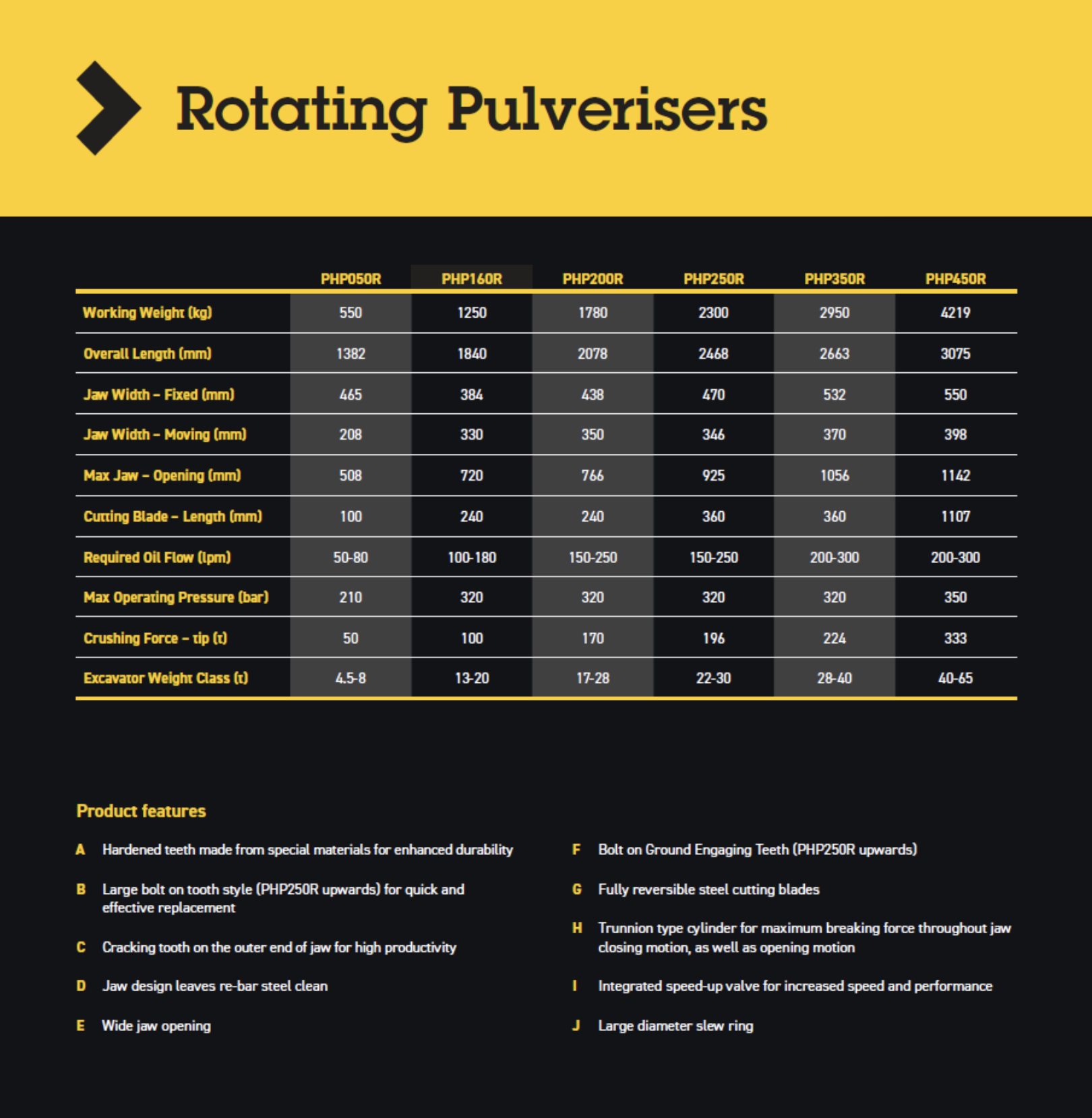

| Make | Model | Machine (t) | Working Weight (kg) | Overall Length (mm) | Required Oil Flow (l/min) | Max Operating Pressure (bar) | Crushing Force Tip (t) |
|---|---|---|---|---|---|---|---|
| Prodem | PHP050R | 4.5-8 |
550 | 1382 | 50-80 | 210 | 50 |
| Prodem | PHP160R | 13-20 |
1250 | 1840 | 100-180 | 320 | 100 |
| Prodem | PHP200R | 17-28 |
1780 | 2078 | 150-250 | 320 | 170 |
| Prodem | PHP250R | 22-30 | 2300 | 2468 | 150-250 | 320 | 196 |
| Prodem | PHP350R | 30-40 | 2950 | 2663 | 200-300 | 320 | 224 |
| Prodem | PHP450R | 40-65 | 4219 | 3075 | 200-300 | 350 | 333 |
